W4EA366 Luxury Exposed Roll Top Bath Chain Waste Kit (For No Tap Hole Baths)
VISIBLE PIPEWORK WITH TAPS NOT ON BATH EDGE
With Burlington Luxury Chain Waste
This kit should be used when the pipework will be visible (exposed) but where the taps are not fitted to the bath rim or tap platform.
- Incudes everything required except the plumber.

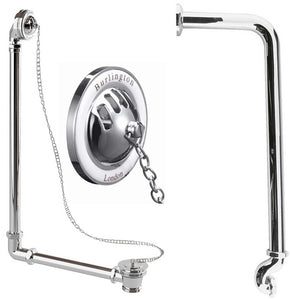

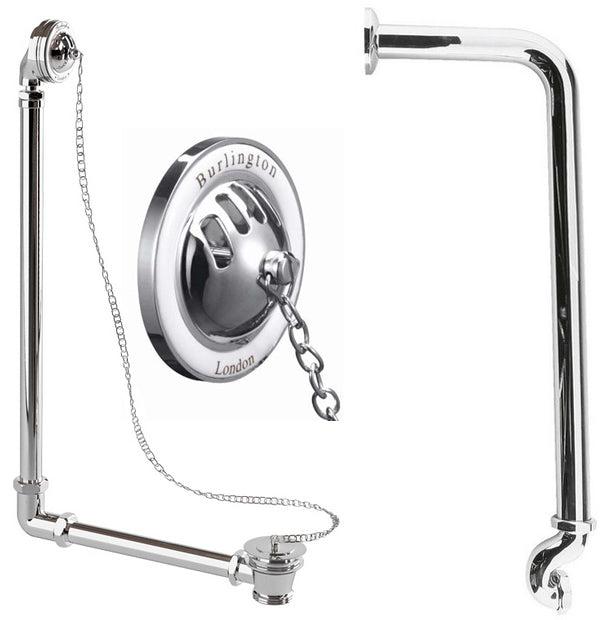

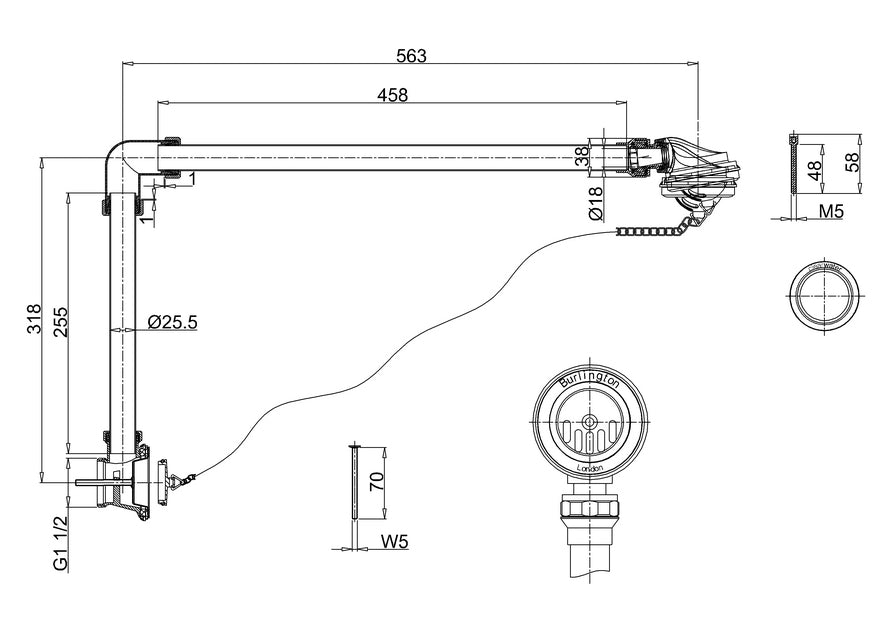

- 1 x Burlington Exposed Bath Waste with chrome overflow pipe.

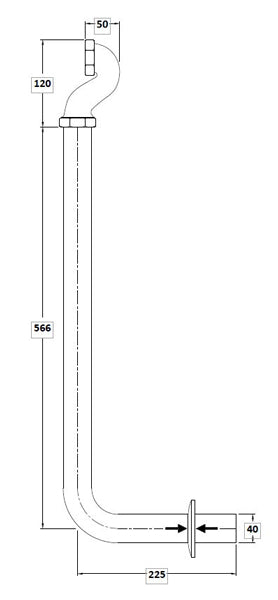

- 1 x Shallow seal trap with chrome outlet pipe and adaptor to fit to plastic piping
- Manufacturers 10 year Guarantee
This waste kit can be supplied in a range of different finishes including polished and bushed nickel, enquire for prices.
Also available - 33cm push on chrome extension pipe - can be cut to length and used to extend either end of the overflow pipe - £20 This will usually only be needed if the plug hole is right in the middle of the bath and not over to one side.
When fitting an ultra shallow trap with a bath waste kit the outlet waste pipe from the trap can go in any direction except back out the way that the overflow pipe comes in. This is because the trap rises up to the same level as the overflow and so the two will interfere with each other unless they are going in different directions
